HP 8922M TESTER
Specifications:

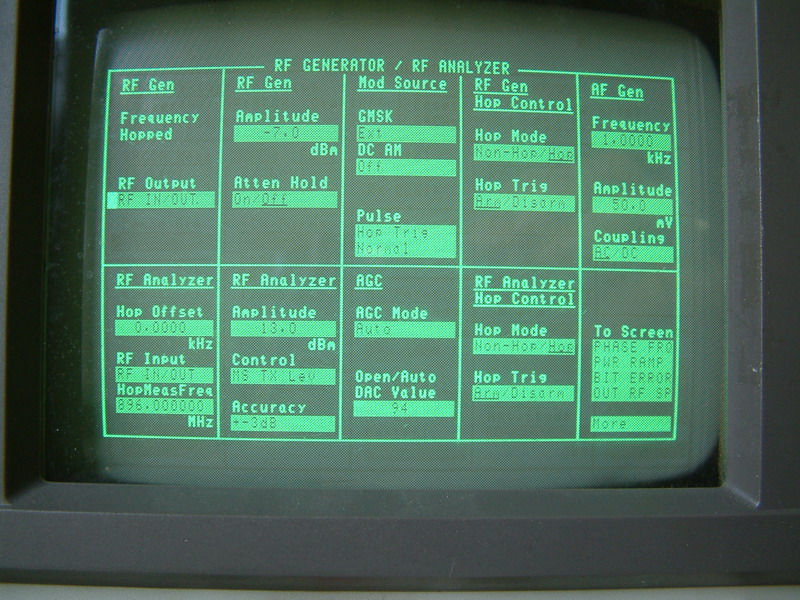

RF
Generator
Frequency
Range
10 MHz to 1000 MHz
Frequency
Resolution
1 Hz
Switching
Speed
577us
0.3 GMSK
Modulation External clock and data
Pulse
Modulation
Normal and 30dB
Output
Power
-14 to -127 dBm
RF
Analyzer
Frequency
Range
10 MHz to 1000 MHz
Frequency
Resolution
1 Hz (100 kHz in hop mode)
Switching
Speed
577us
Coherent
Data Demodulation
0.3 GMSK at 270.833 Kb/s, 1 timeslot/frame
Global
Method

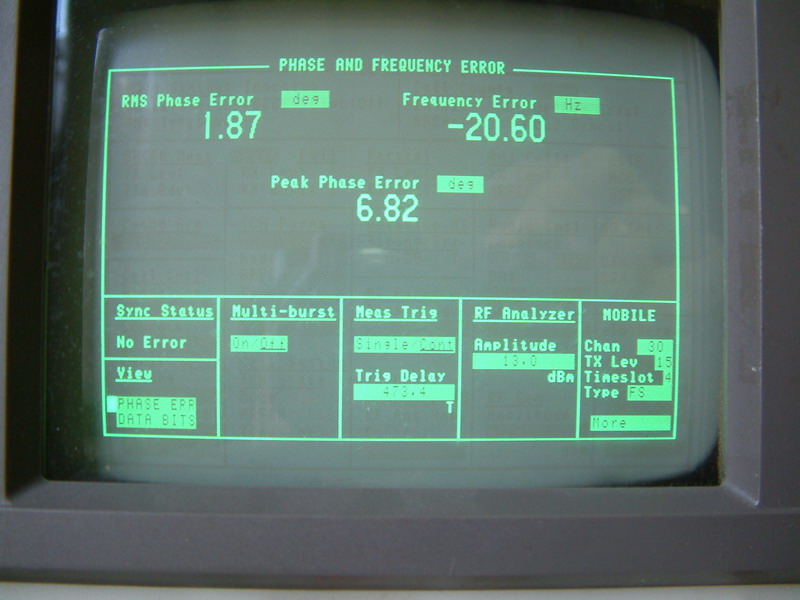

rms and peak phase error/frequency error
Amplitude

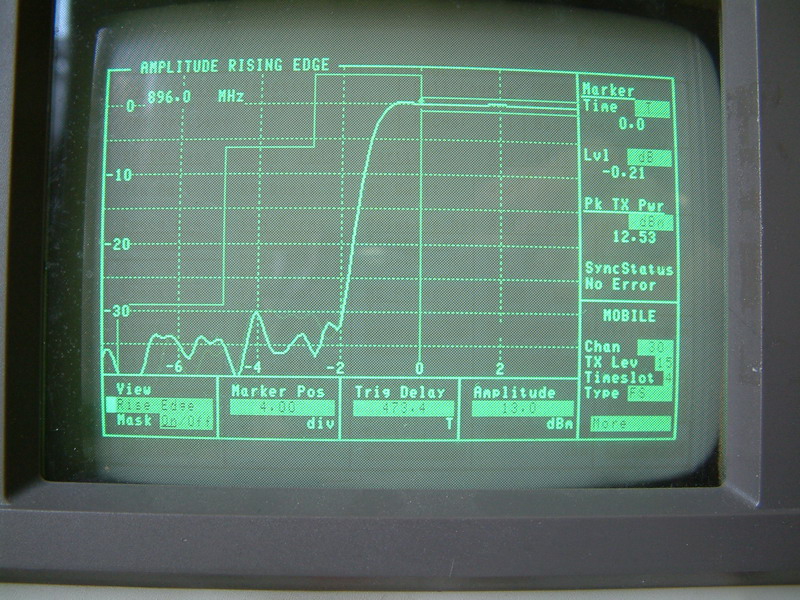

Envelope
Rise, fall, and burst flatness over useful bits
Peak
Transmitter Power
-5 dBm to 41 dBm

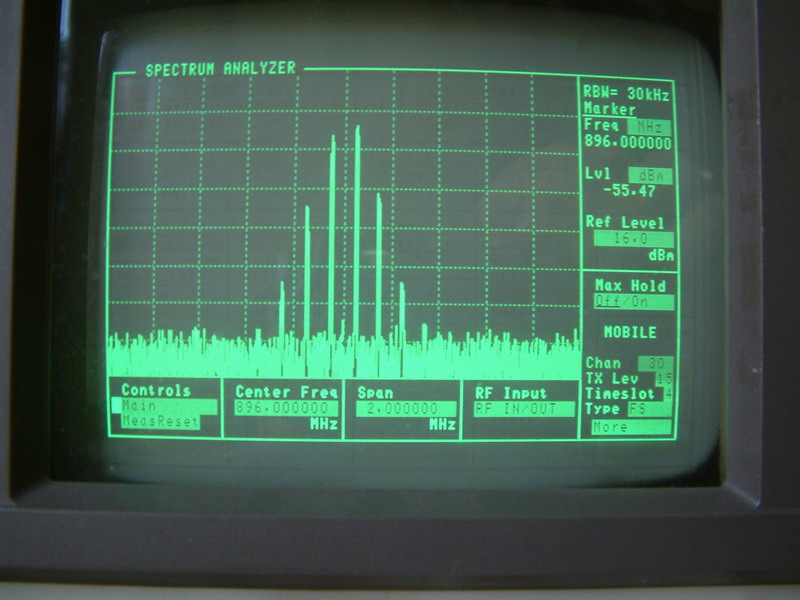

Spectrum
Analyzer (Option 006)
Frequency
Range
10 MHz to 1000 MHz
Frequency
Accuracy and Stability
Same as timebase
Display
Range
80 Db
Other
Features
External trigger, marker
Digital
Oscilloscope
Frequency
Range
2 Hz to 50 kHz
Sweep
Times
10us to 100 ms in 1,2,5,10 steps
Frequency Range:
20 Hz to 400 kHz
AC
Voltage Range: 0 to 30 Vrms
DC
Voltage Range: 100 mV to 42 V
THD
+ Noise
1 kHz ± 5 Hz
SINAD
1 kHz ± 5 Hz
Audio
Source
Frequency
Range
DC to 25 kHz
Output
Level Range
0.1 mVrms to 4 Vrms
Every set

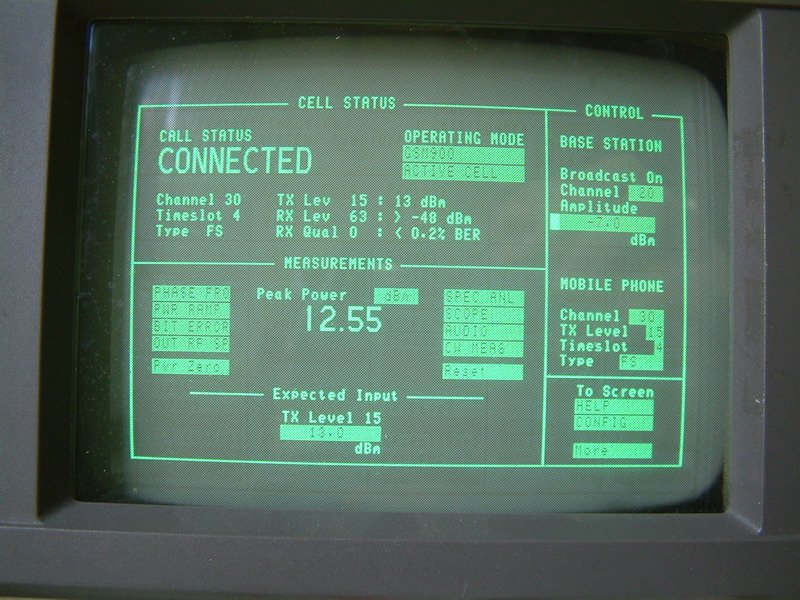

has been tested to pass GSMDIAG, DCSDIAG, RF_DIAG, AF_DIAG, MS_DIAG
and self-test, as well as to make calls to a handset and to receive

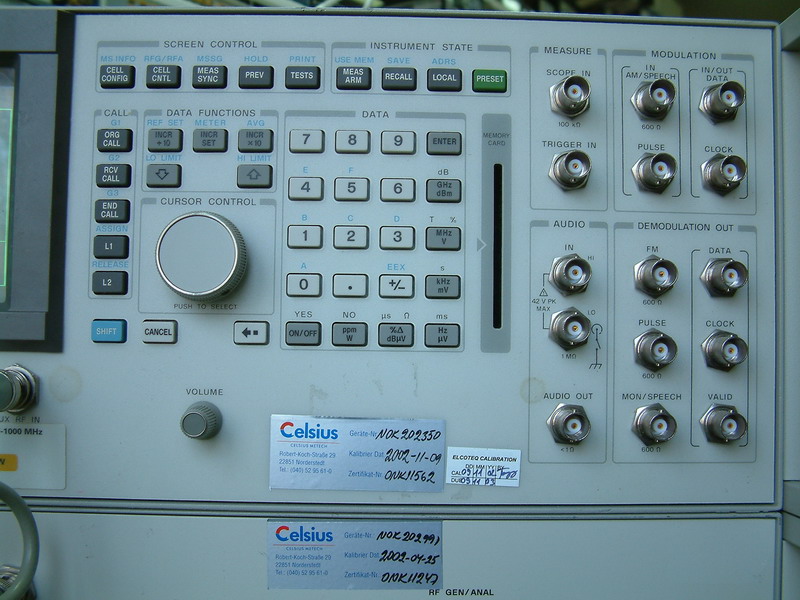

them. Calibration due time has passed according to labels. A
calibration (non-accredited) can be negotiated for a moderate cost.

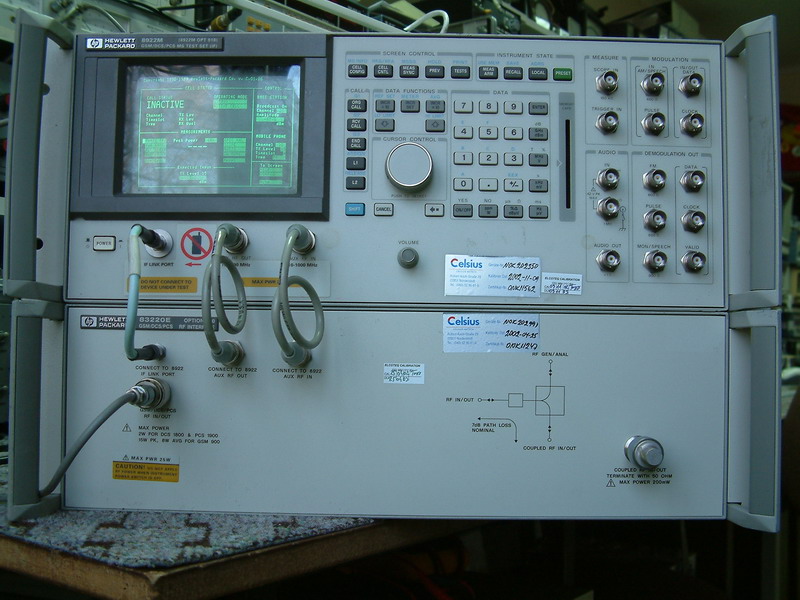

Comes with manuals on CD
and all the cables except the power cord and the handset cable in the
picture (it's just a self-made coax loop antenna)
. A Test SIM Card will be included for no additional charge as long
as there is stock.
Documents:
http://cp.literature.agilent.com/litweb/pdf/5964-6586E.pdf
http://cp.literature.agilent.com/litweb/pdf/5966-1617E.pdf
|
