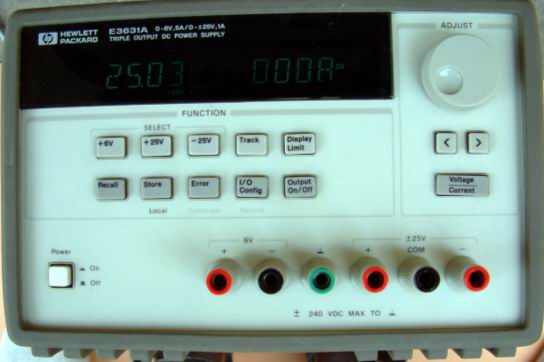

Hewlett Packard E3631A Triple Output DC Power Supply



Voltage outputs: 1 each: 0 to +25 Vdc @ 0-1 A; 0 to -25 Vdc @ 0-1 A; 0 to 6 Vdc @ 0-5 A

  •  Ripple & noise (voltage/rms peak-peak/current rms): <350 µV/2 mV/<500 µA
  •  Voltage accuracy: 0.05% +20 mV
  •  Load regulation: <0.01% + 2 mV; <0.01% + 250 µA
  •  GPIB and RS-232 interfaces
  •  115 Vac ±10%; 47-63 Hz operation
  •  Weight: 15 lb; Size: 132 mm (5.2 in)H x 213 mm (8.4 in)W x 348 mm (13.7 in)D
